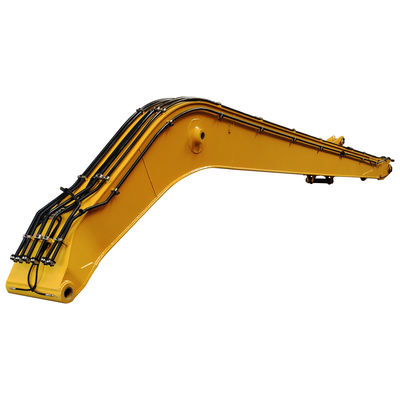

Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators

Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators

Ampliación de imagen :  Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators

Datos del producto:
Lugar de origen: Guangdong, China
Nombre de la marca: HYKING
Certificación: CE ISO
Número de modelo: HK-LRB200
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: $8,000
Contacto

Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators

descripción
Peso: 4260 kilos Excavadora adecuada: 20 toneladas
Componentes centrales: Cilindro hidráulico Material: Q345B/Q690D
Longitud total: 13000-24000 mm Peso propio total: 3000-7000 kg
Max Reach: 12500-23600 mm Profundidad máxima de corte: 9000-18000 mm
Altura máxima de corte: 11300-17300 mm Altura de plegado: 2900-3400 mm
Volumen del cubo: 0.3-0.6 m3 Tonaje de las excavadoras: 10-50 toneladas
El auge más largo: 32 m soldadura por costura: 45 grados cónicos
El tiempo de entrega: 20-30 días
Resaltar:

10m-20m Length Excavator Long Reach Boom

,

Q345B/Q690D Material Excavator Extension Arm

,

20ton Suitable Material Handling Arm

Excavator 10m-20m Long Reach Boom and Arm for Dredging River Dig Subway
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 0
Our long reach boom systems provide extensive work range, making them ideal for dredging rivers, port construction, and subway projects. These high-efficiency systems ensure operator safety and can be customized to meet specific requirements.
Key Features
  1. Compatible with all excavator models
  2. Standard package includes bucket, linkage, bucket cylinder, oil pipes/hoses, pins, and lubrication system
  3. Multiple material options including Q345B, Q690D, and Weldox to suit various applications
  4. Two-piece boom design available for container shipping efficiency
  5. 45-degree tapered seams for superior welding quality
  6. 6-month warranty included
  7. Reinforced components available for heavy-duty applications
  8. Optional boom and arm cylinders available
  9. Custom pipeline configurations possible
  10. Experience with booms up to 32m length for Hitachi EX3500
Technical Specifications
Model LR120 LR200-1 LR200-2 LR300 LR350-1 LR350-2 LR450
Total length (mm) 13000 15380 18000 18000 20000 22000 24000
Total weight (kg) 3000 4150 4400 5200 6000 6500 7000
Max reach (mm) 12500 15100 17600 17600 19600 21600 23600
Max cut depth (mm) 9000 11340 12200 12200 14500 16100 18000
Max cut height (mm) 11300 12510 13500 13720 14920 16100 17300
Folding height (mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume (m³) 0.3 0.6 0.4 0.4 0.5 0.6 0.6
Excavator tonnage (ton) 10-15 16-22 20-24 25-33 30-36 30-40 40-50
Product Gallery

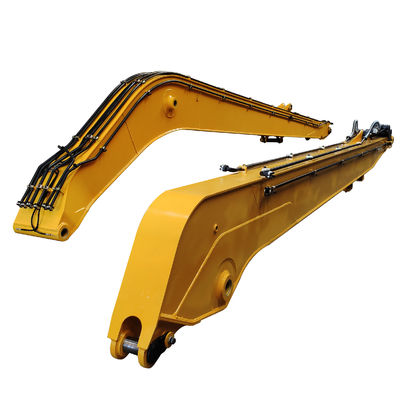

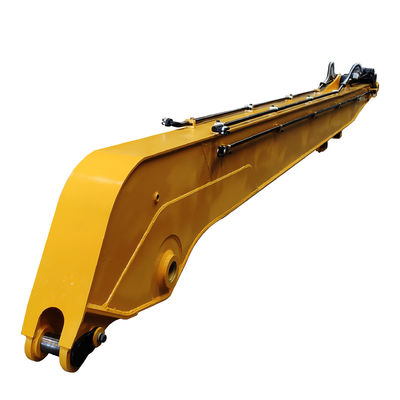

Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 1 Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 2 Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 3
Bucket Options
Rock Bucket
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 4 Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 5
Specialty Buckets
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 6 Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 7 Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 8 Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 9
Our Advantages
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 10
Customization Services
We maintain detailed specifications for most excavator models and can customize long reach booms to match your specific equipment requirements.
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 11
Proven Designs
All our designs undergo extensive testing and continuous improvement based on years of field experience.
Excavator Long Reach Boom and Arm 10m-20m Length for Dredging River and Dig Subway with Q345B/Q690D Material for 20ton Excavators 12
Comprehensive Support
We provide detailed parts lists and maintenance documentation to simplify after-sales service.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: What is your delivery time for long reach booms?
A: 20 days for 1 kit, 30 days for one container (3 kits).
Q: Do you provide maintenance parts?
A: Yes, we supply exploded parts diagrams and can provide any required components.
Q: What are your payment terms?
A: 30% T/T deposit, balance before shipment.
